Tilt Rollabout Chair
CF5100 Tilt Chair Feature and Operation Video

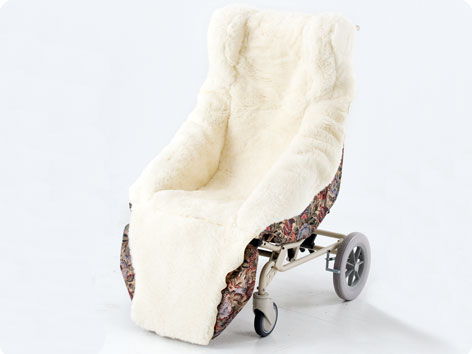

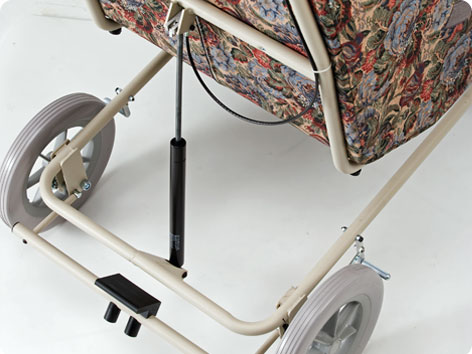

The Carefoam Tilt Rollabout is a truly unique tilt-in-space chair. The gas-cylinder-assisted tilt system is infinitely adjustable, enabling the resident to be positioned from upright to a comfortable recline. Family and staff appreciate the large wheels that are suitable for indoor and outdoor use. The Tilt Rollabout is especially recommended for those residents needing frequent position changes to reduce the possibility of tissue breakdown. The exclusive sling-back design provides lumbar support and thoracic stability, and the seating area is lined with memory foam. The adjustable leg rest is ideal for residents with contractures or for those who need maximum lower limb elevation. The Tilt Rollabout’s dimensions and full-upright capability encourage use at the dining or activity table.
The CF530 Bariatric Tilt Rollabout has extended seat depth and extra thick seating with memory foam. This model features gas-cylinder-assisted leg rest movement and rolls easily through a 32” doorway.
Note: Because the leg rest extends forward of the front casters, the Tilt Rollabout is best suited for those clients who cannot or will not crawl out over the leg rest.
- One-step brake operation.
- Genuine Australian lambswool comfort covers (machine washable) offer superior skin care and comfort.
- Optional Alpine Fleece comfort covers are available.
- Crypton® upholstery fabric (two pattern choices) is water repellent, stain resistant, and antibacterial.
- Carefoam covers are treated with Ultra-Fresh® for antibacterial and freshness protection.
- Incontinence-proof seat insert is antibacterial SoffTICK® with welded seams.
- 12” rear wheels and 6” front casters ensure easy maneuverability, indoors and outdoors.
- Fabric and foam meet fire retardancy requirements of the California Technical Bulletin 117.
- Limited Manufacturer’s Warranty - 3 years on all components except covers. Covers guaranteed free from defects upon delivery. Please follow care and laundering instructions.
Important: NO CHAIR CAN TOTALLY PREVENT FALLS. CHAIR USERS SHOULD BE SUPERVISED
AT ALL TIMES.
Galaxy Fabric
Multi Fabric
Australian Lambswool Cover
Blue Alpine
Fleece Cover
Beige Alpine
Fleece Cover
Product Dimensions
| Model | CF510 |
CF520 (Wide) |
CF530 (Bariatric) |
|---|---|---|---|
| Overall Height | 38" 97 cm |
38" 97 cm |
39" 99 cm |
| Overall Width | 28" 71 cm |
28" 71 cm |
31.5" 80 cm |
| Chair Length | 48" 122 cm |
48" 122 cm |
48" 122 cm |
| Leg Rest Length | 16" 40 cm |
16" 40 cm |
16" 40 cm |
| Overall Length* | 64" 162 cm |
64" 162 cm |
64" 162 cm |
| Seat Width | 18" 46 cm |
20" 51 cm |
24" 61 cm |
| Seat Depth | 19" 48 cm |
19" 48 cm |
21" 53 cm |
| Back Height | 28" 71 cm |
28" 71 cm |
28" 71 cm |
| Arm Depth | 9.5" 24 cm |
9.5" 24 cm |
9.5" 24 cm |
| Weight Capacity | 250 lbs. 114 kg |
300 lbs. 136 kg |
400 lbs. 181 kg |
| Chair Weight | 89 lbs. 40 kg |
94 lbs. 43 kg |
106 lbs. 48 kg |
* With leg rest extended parallel to floor
Seating angle is fully adjustable from upright
through 45° of tilt-in-space.
